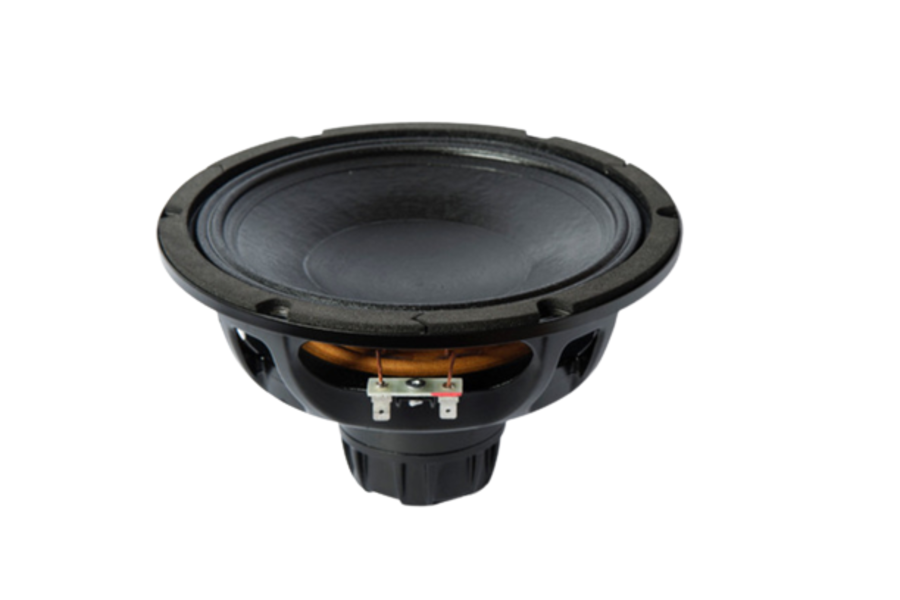

14_19_37_589_8ntlw2000_removebg_preview

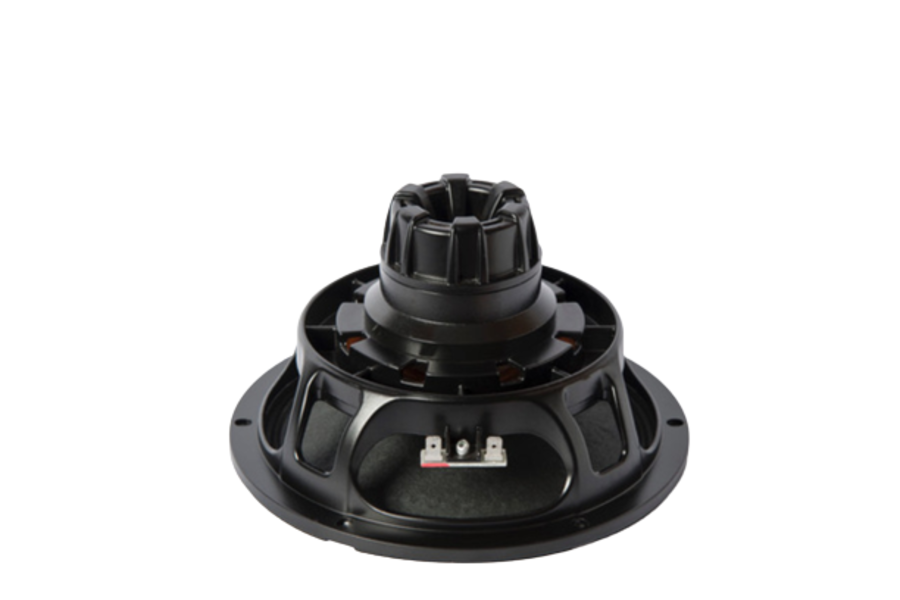

14_19_40_478_8ntlw2000back_removebg_preview

Features

  • Tetracoil ultra linear motor
  • 350W AES power handling
  • 51 mm (2 in) CCAW voice coil
  • Extremely balanced BL shape for maximum SPL
  • Optimized thermal conductivity
  • Maximum linearity and inductance symmetry for extended mid-band clarity
  • Ideal for super light line array applications
The 8NTLW2000 represents the latest 18sound technology for high quality, low distortion applications. The smallest Tetracoil motor structure of the family uses the same concept to maximize its benefits in terms of thermal dissipation and Bl symmetry to a wide frequency band, making the 8NTLW2000 the perfect component both as a woofer and a midbass.
Tetracoil motors linearize inductance and the perfect balance we reached between the motor and the ultra linear suspension allows both very high excursion and extreme precision in the mid band with the lowest intermodulation distortion in the professional market.
This features, together with its extreme low weight make the 8NTLW2000 the perfect component for highest quality line arrays and multi-way systems.

Specifications

Design

Parameters

Mounting and Shipping Info

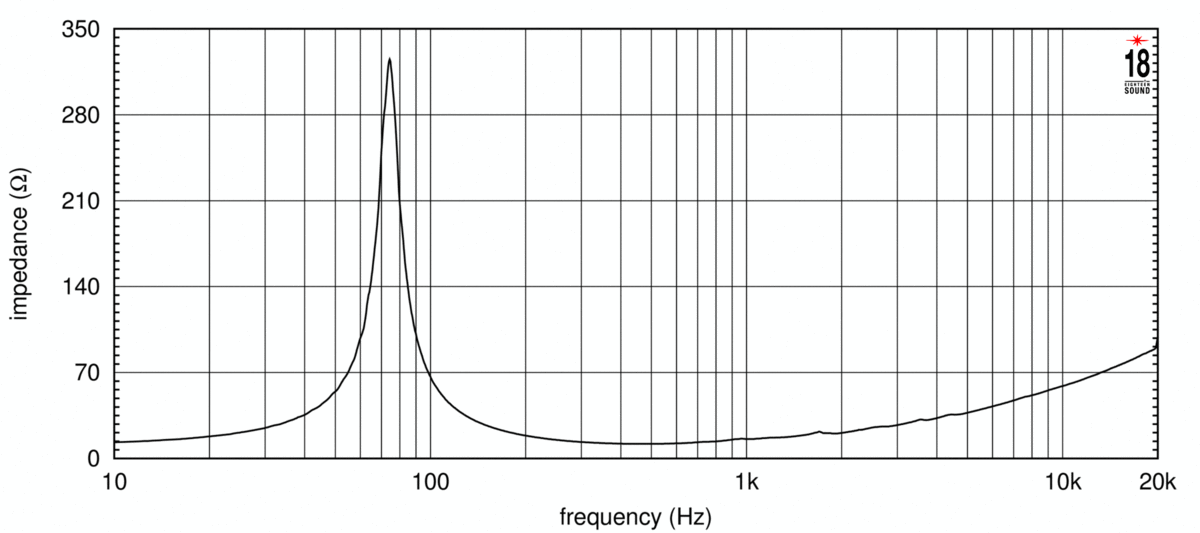

  • Nominal Impedance16 Ω
  • Minimum Impedance12.0 Ω
  • Nominal Power Handling1350 W
  • Continuous Power Handling2700 W

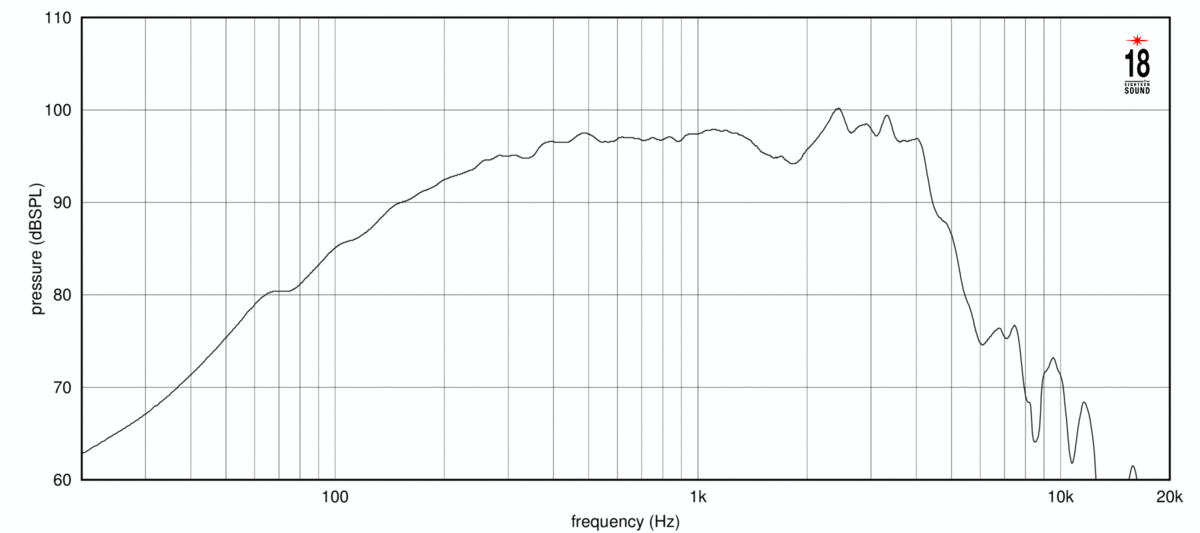

  • Sensitivity396.5 dB
  • Frequency Range60 - 3000 Hz
  • Voice Coil Diameter51 mm (2.0 in)
  • Winding Materialaluminum
  • Winding Depth13.0 mm (0.51 in)
  • Magnetic Gap Depth8.5 mm (0.33 in)
  • Surround ShapeDouble roll
  • Cone ShapeCurvilinear
  • Magnet MaterialNeo
  • Woofer Cone TreatmentWeather protected
  • Recommended Enclosure15.0 dm3 (0.53 ft3)
  • Recommended Tuning100 Hz
  • Resonance Frequency74 Hz
  • Re11.1 Ω
  • Qes0.27
  • Qms12.9
  • Qts0.26
  • Vas11.3 dm3 (0.4 ft3)
  • Sd227.0 cm2 (35.19 in2)
  • η₀1.8 %
  • Xmax4.4 mm
  • Xvar5.0 mm
  • Mms27.0 g
  • Bl22.4 Txm
  • Le1.34 mH
  • EBP274 Hz

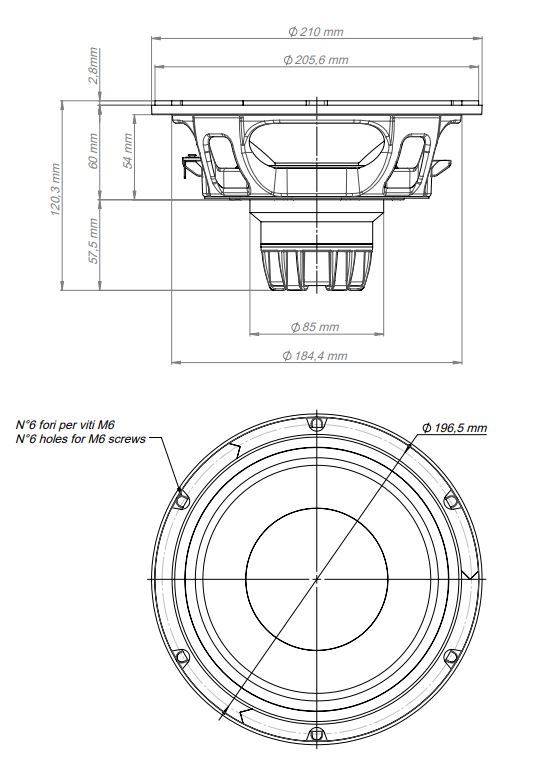

  • Overall Diameter210 mm (8.27 in)
  • Bolt Circle Diameter196 mm (7.74 in)
  • Baffle Cutout Diameter186.0 mm (7.32 in)
  • Depth121 mm (4.76 in)
  • Flange and Gasket Thickness9 mm (0.35 in)
  • Net Weight1.5 kg (3.31 lb)
  • Shipping Weight1.9 kg (4.19 lb)
  • 2 hours test made with continuous pink noise signal within the range Fs-10Fs. Power calculated on rated minimum impedance. Loudspeaker in free air.
  • Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
  • Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
