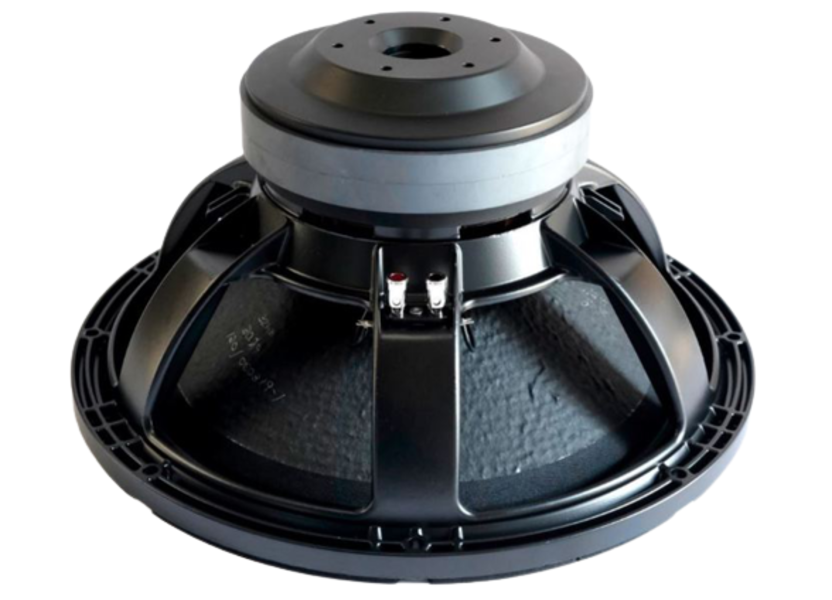

Cattura_18lw2600_2

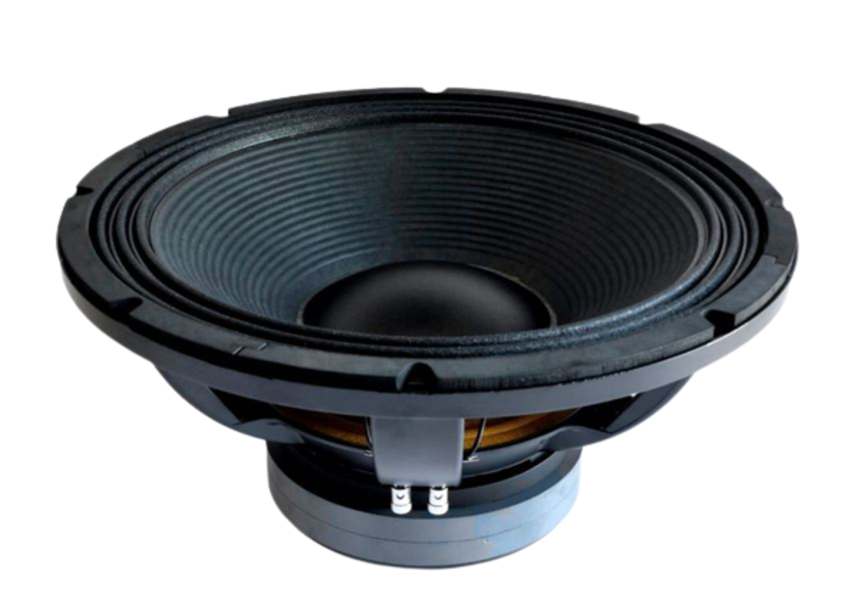

Cattura_18lw2600_1
Alternative/Current Model:
18NLW4000

Features

  • 97 dB SPL 1W / 1m average sensitivity
  • 100 mm (4 in) Interleaved Sandwich Voice coil (ISV)
  • 3000W program power handling
  • 60 mm peak to peak excursion
  • Ultra linear dual magnet motor design
  • Single Demodulating Ring (SDR) for lower distortion
  • Composite reinforced straight ribbed cone
  • Optimized high grade ferrite magnet assembly
  • Recommended for subwoofer usage in compact vented enclosures
The 18LW2600 is a 18" (466 mm) extended low frequency loudspeaker,especially designed for use in vented enclosures. The loudspeaker is designed to withstand high power levels without damage while providing clean and undistorted LF reproduction at a very high SPL. For optimum results we recommend amplifiers able to deliver 3000 Watt program power. The 18LW2600 features a unique motor featuring a high grade ferrit magnet assembly in a structure optimized for thermal and magnetic efficiency. 18LW2600 features include a large displacement suspension system which, in conjunction with a composite reinforced, straight ribbed cone, allows an ultra-linear piston action and provides full mechanical control across the entire working range. The 100mm (4 in) state-of-theart voice-coil utilizing Interleaved Sandwich Voice coil (ISV) technology, provides high levels of thermal stability and durability. The ISV technology achieves a balanced linear motor unit exerting an exceptionally high force factor.

Specifications

Design

Parameters

Mounting and Shipping Info

  • Nominal Impedance8 Ω
  • Minimum Impedance6.4 Ω
  • Nominal Power Handling11500 W
  • Continuous Power Handling23000 W
  • Sensitivity396.8 dB
  • Frequency Range30 - 800 Hz
  • Voice Coil Diameter100 mm (4.0 in)
  • Winding Materialcopper
  • Recommended Enclosure200.0 dm3 (7.06 ft3)
  • Recommended Tuning33 Hz
  • Resonance Frequency31 Hz
  • Re4.9 Ω
  • Qes0.3
  • Qms11.7
  • Qts0.29
  • Vas187.0 dm3 (6.6 ft3)
  • Sd1225.0 cm2 (189.88 in2)
  • η₀1.8 %
  • Xmax14.8 mm
  • Maximum Excursion16.0 mm
  • Mms303.0 g
  • Bl31.0 Txm
  • Le3.42 mH
  • EBP103 Hz
  • Overall Diameter462 mm (18.19 in)
  • Bolt Circle Diameter440 mm (17.32 in)
  • Baffle Cutout Diameter416.0 mm (16.38 in)
  • Depth231 mm (9.09 in)
  • Flange and Gasket Thickness23 mm (0.93 in)
  • Net Weight16.1 kg (35.49 lb)
  • Shipping Weight16.5 kg (36.38 lb)
  • 2 hours test made with continuous pink noise signal within the range Fs-10Fs. Power calculated on rated nominal impedance. Loudspeaker in free air.
  • Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
  • Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
