14_56_57_461_13_59_35_793_8nm610

Features

  • 104 dB SPL 1W / 1m average sensitivity (free air)
  • 75 mm (3 in) Interleaved Sandwich Voice coil (ISV
  • 400 W AES power handling
  • HIgh force neodymium motor assembly
  • Copper ring to linearize impedance curve
  • Extremely low distortion design
  • Sealed basket design
  • Humidity resistant cone
  • Ideal for high quality, very high SPL midrange applications
The 8NM610 is a 8 inch neodymium high output midrange frequency transducer designed
around a cast aluminum sealed basket.
The design goal for this unit is to achieve an extremely high sound output and quality for direct
and mainly horn loaded applications such as line array configurations. The back cavity volume
has been optimized with attention to horn applications and also on the heat extraction because
it is a true powerful heatsink for all the encapsulated magnet structure.
An oversized external configuration neodymium magnet, considerably more efficient than
traditional under-pole magnet topology, have been used in order to provide high flux density
and excellent distortion control.
A flux stabilizing copper ring minimizes the overall harmonic and intermodulation distortion
figure.
The curvilinear cone, made with a high damping wood pulp, has been developed to achieve the
best possible linearity within its frequency range.
The 75mm (3 in) aluminum inside outside voice coil employs our Interleaved Sandwich Voice coil
(ISV) technology, in which a high strength fiberglas former carries windings on both the outer
and inner surfaces to achieve a balanced coil with a uniform distribution of mass and motive
energy. This results in an extremely linear motor assembly.
A proprietary humidity-block cone treatment makes the transducer suitable for outdoor use in
adverse weather conditions. In addition, a special coating applied to both the top and back
plates makes the 8NM610 far more resistant to the corrosive effects of salts and oxidization.

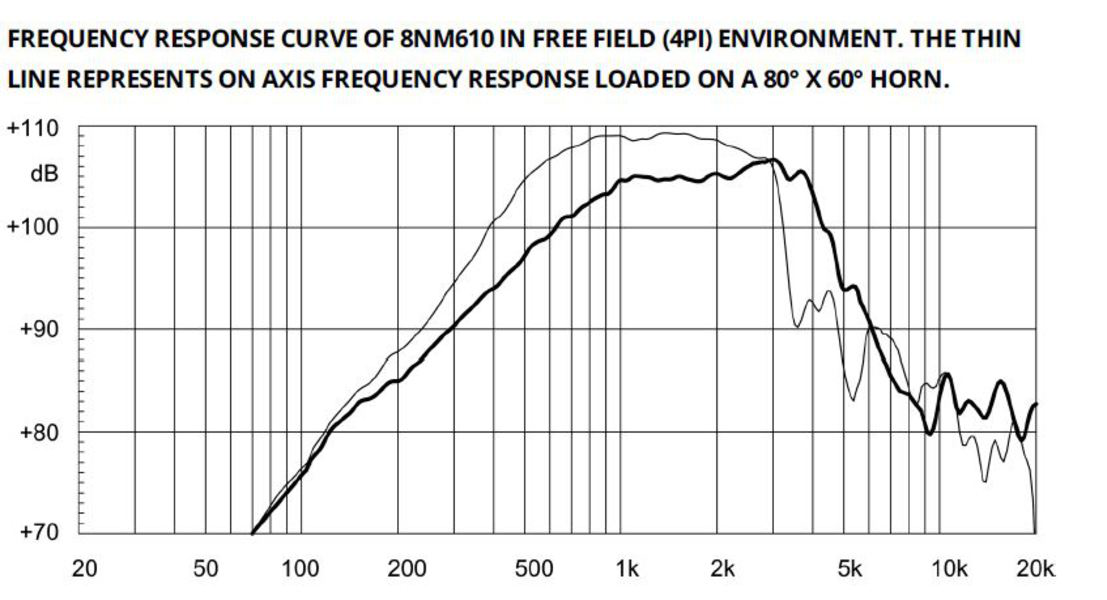

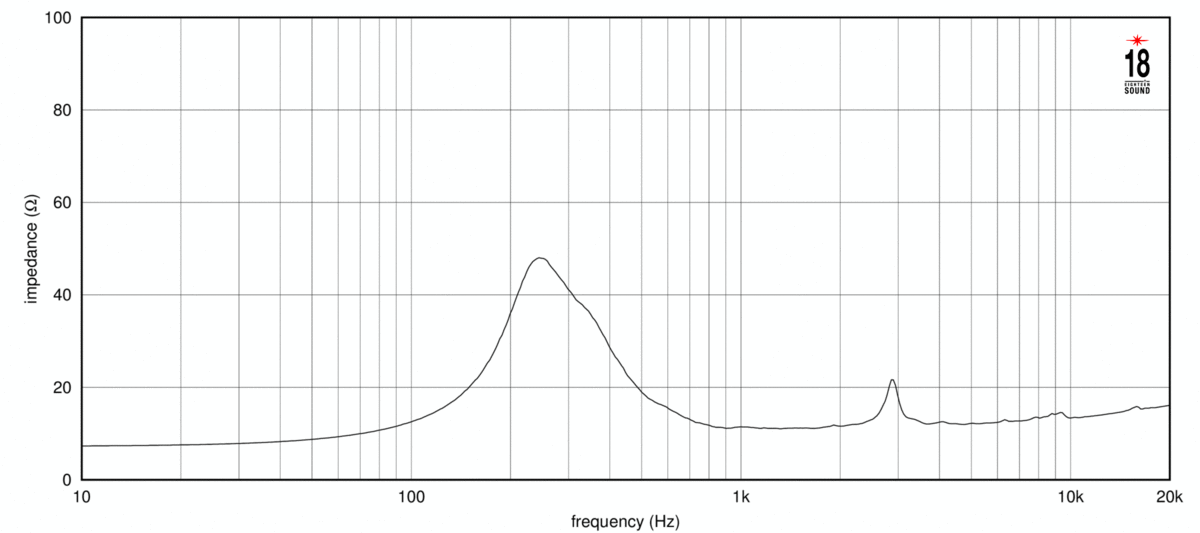

Specifications

Design

Parameters

Mounting and Shipping Info

  • Nominal Impedance8 Ω
  • Minimum Impedance11.0 Ω
  • Nominal Power Handling1400 W
  • Continuous Power Handling2600 W
  • Sensitivity3104.0 dB
  • Frequency Range400 - 5000 Hz
  • Voice Coil Diameter75 mm (3.0 in)
  • Magnet MaterialNeo
  • Resonance Frequency260 Hz
  • Re6.5 Ω
  • Qes0.24
  • Qms1.52
  • Qts0.21
  • Vas1.5 dm3 (0.05 ft3)
  • Sd220.0 cm2 (34.1 in2)
  • Xmax3.0 mm
  • Mms18.0 g
  • Bl28.3 Txm
  • Le0.4 mH
  • EBP1083 Hz
  • Overall Diameter240 mm (9.45 in)
  • Bolt Circle Diameter220 mm (8.66 in)
  • Baffle Cutout Diameter192.0 mm (7.56 in)
  • Depth113 mm (4.45 in)
  • Flange and Gasket Thickness14 mm (0.55 in)
  • Net Weight4.5 kg (9.92 lb)
  • Shipping Weight4.8 kg (10.58 lb)
  • 2 hours test made with continuous pink noise signal within the range Fs-10Fs. Power calculated on rated minimum impedance. Loudspeaker in free air.
  • Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
  • Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
