  • 44mm CCAW voice coil
  • Optimized for horn radiation in small enclosures
  • Hugh damping cone
  • SDR for low distortion and medium clarity
  • High Flux and heat dissipation capabilities

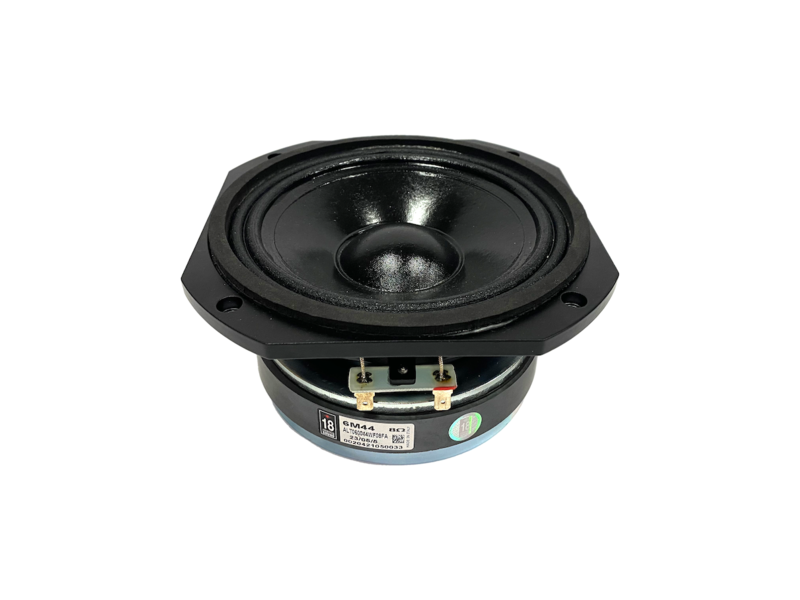

The 6M44 is a high power, high output, 6.5" midrange for high level professional use.The excellent sound quality has been achieved as a result of extensive research on mid frequencies intelligibility. The 6M44 has been designed for use as a midrange in both horn and direct radiation, closer or reflex enclosures, as small as 3 lt. The high damping pulp cone, has been designed to achieve the best possible linearity within its
frequency range. The in-house developed cone treatment is a humidity repellent and also dampens the bell mode resonance significantly. The 44 mm CCAW voice coil assembly is wound on a strong fiberglas former to improve force transmission and power handling. The powerful magnet assembly assures high flux concentration. The force factor and power handling are at an optimum level with improved thermal connection and heat dissipation, further increasing power handling and lowering power compression. The demodulating ring technology reduces inductance and improves transient response and phase control in the mid frequencies.




Mounting and Shipping Info

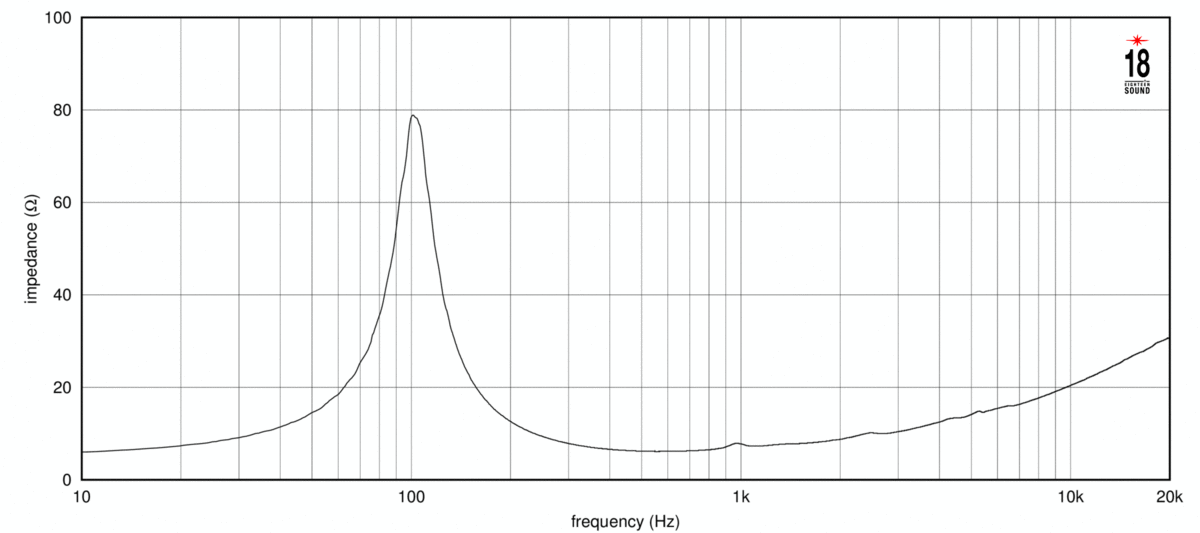

  • Nominal Impedance8 Ω
  • Minimum Impedance6.2 Ω
  • Nominal Power Handling1200 W
  • Continuous Power Handling2350 W

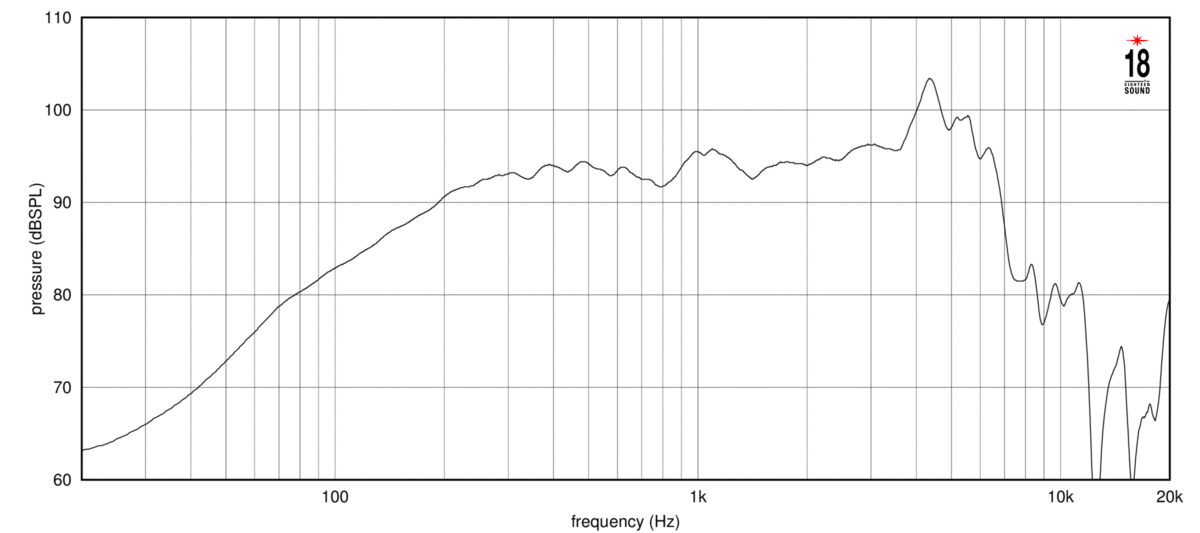

  • Sensitivity395.0 dB
  • Frequency Range140 - 7000 Hz
  • Voice Coil Diameter44 mm (1.75 in)
  • Winding Materialaluminum
  • Winding Depth13.0 mm (0.51 in)
  • Magnetic Gap Depth7.0 mm (0.28 in)
  • Surround ShapeM-roll
  • Magnet MaterialFerrite
  • Woofer Cone TreatmentWeather protected
  • Recommended Enclosure3.0 dm3 (0.11 ft3)
  • Resonance Frequency102 Hz
  • Re5.3 Ω
  • Qes0.31
  • Qms4.4
  • Qts0.29
  • Vas3.8 dm3 (0.13 ft3)
  • Sd132.0 cm2 (20.46 in2)
  • η₀1.2 %
  • Xmax2.25 mm
  • Mms16.0 g
  • Bl13.4 Txm
  • Le0.32 mH
  • EBP329 Hz

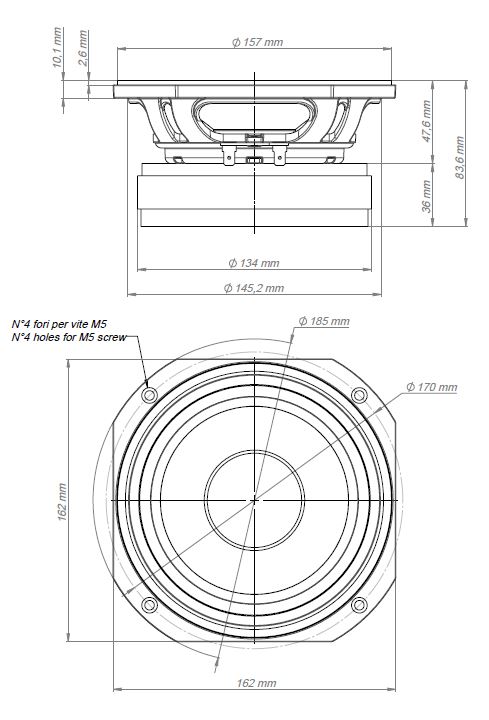

  • Overall Diameter162 mm (6.38 in)
  • Bolt Circle Diameter170 mm (6.69 in)
  • Baffle Cutout Diameter148.0 mm (5.83 in)
  • Depth85 mm (3.35 in)
  • Flange and Gasket Thickness13 mm (0.51 in)
  • Net Weight3.4 kg (7.5 lb)
  • Shipping Weight3.6 kg (7.94 lb)
  • 2 hours test made with continuous pink noise signal within the range Fs-10Fs. Power calculated on rated minimum impedance. Loudspeaker in free air.
  • Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
  • Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
