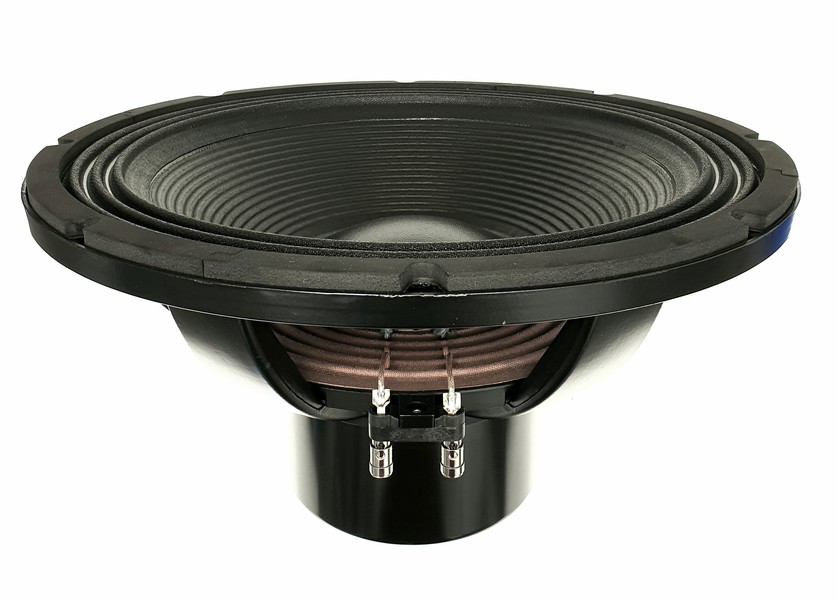

15_44_15_138_14_05_47_497_20220301_124405_edit
15_44_15_449_14_05_47_505_20220301_124642
Alternative/Current Model:
18iDSDS

Features

  • Class D amplifier optimized for maximum power transfer
  • Conforms to Powersoft™ iPal® standards
  • 95 dB SPL 1W / 1m average sensitivity
  • 135mm (5.3") split winding, four layer ISV copper voice coil
  • 3600 W program power handling
  • Double Silicon Spider (DSS) for improved excursion control

Limited distribution - US only

Contact Thunderball Marketing for info

The 18iDSDS is an 18 inch neodymium ultra high performance subwoofer. The transducer has been optimized for any subwoofer cabinet designs (even the most compact) and is recommended for being driven by a Class D or iPal (tm*) amplifier able to deliver 3600 Watt program power without clipping on 2ohms loads. 18 Sound engineers have obtained the best possible results with today's available materials in terms of clean and undistorted LF reproduction at a ultra high SPL, with the lowest possible power compression figure. The 18IDSDS design features include a large displacement suspension system specifically designed for matching the composite fiber reinforced, straight ribbed cone. Thanks to the Double Silicon Spider (DSS) technology, the 18IDSDS200 is able to control the moving mass with high linearity, showing an exceptional stability of mechanical parameter values in the long term. Bl force factor, as well as all other electro-dynamic parameters, are linear within the working range. This, together with the exceptional high excursion behavior, ±18mm linear Xmax - makes the 18IDSDS200 an extremely low distortion, highly dynamic transducer. The 18IDSDS features a state-of-the-art 5,3" inside outside ISV copper voice coil enabling the 18iD to deliver extraordinary transient results. The 18IDSDS has been developed after intense FEA and fluidodynamics simulation and testing,focusing on dissipating the heat generated by the powerful voice coil. Special attention was given to the optimization of air flow into the gap without introducing audible noise. A low density material air diffractor placed into the heatsink acts as a cooling system, increasing the power handling capability and lowering the power compression figure.

Specifications

Design

Parameters

Mounting and Shipping Info

  • Nominal Impedance2 Ω
  • Minimum Impedance1.9 Ω
  • Nominal Power Handling11800 W
  • Continuous Power Handling23600 W
  • Sensitivity395.0 dB
  • Frequency Range29 - 1000 Hz
  • Voice Coil Diameter135 mm (5.3 in)
  • Winding Materialaluminum
  • Winding Depth45.0 mm (1.77 in)
  • Magnetic Gap Depth18.0 mm (0.71 in)
  • Surround ShapeTriple roll
  • Magnet MaterialNeo
  • SpiderDouble Silicon Spider
  • Woofer Cone TreatmentReinforced, water repellent, treated paper
  • Recommended Enclosure120.0 dm3 (4.24 ft3)
  • Recommended Tuning33 Hz
  • Resonance Frequency29 Hz
  • Re1.3 Ω
  • Qes0.18
  • Qms7.0
  • Qts0.17
  • Vas136.0 dm3 (4.8 ft3)
  • Sd1225.0 cm2 (189.88 in2)
  • η₀2.0 %
  • Xmax18.0 mm
  • Xvar15.0 mm
  • Mms444.0 g
  • Bl24.4 Txm
  • Le0.93 mH
  • EBP161 Hz
  • Overall Diameter462 mm (18.19 in)
  • Bolt Circle Diameter440 mm (17.32 in)
  • Baffle Cutout Diameter417.0 mm (16.42 in)
  • Depth238 mm (9.37 in)
  • Flange and Gasket Thickness24 mm (0.94 in)
  • Net Weight16.0 kg (35.27 lb)
  • Shipping Weight16.6 kg (36.6 lb)
  • 2 hours test made with continuous pink noise signal within the range Fs-10Fs. Power calculated on rated minimum impedance. Loudspeaker in free air.
  • Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
  • Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
