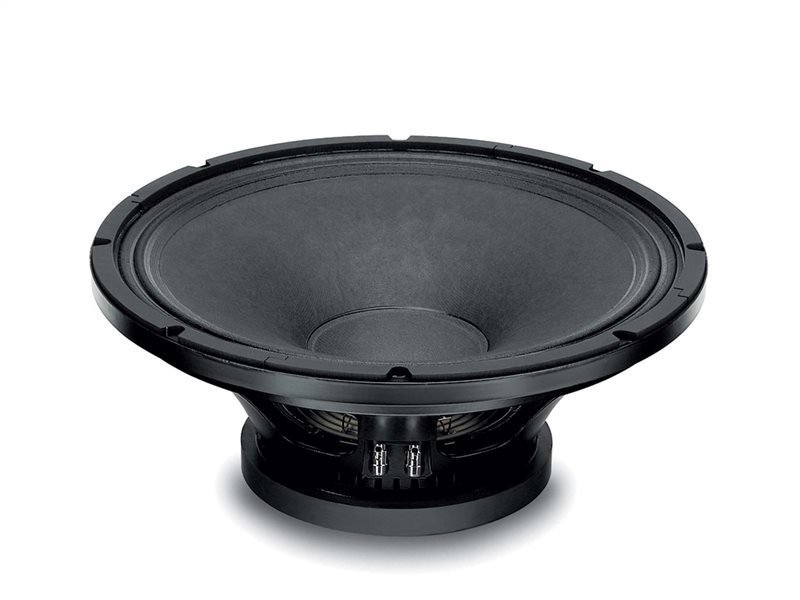

he 15MB650 high output mid bass has been designed for use as a bass and low-midrange driver in tuned reflex enclosures, in 2- or 3-way systems. When used in a 2-way system, we recommend a 1" or 2" exit compression driver to obtain the best sound quality and directional control. The 15MB650 combines a high sensitivity value
(101dB 1W/1m) with high power handling capabilities.
The curvilinear paper cone, in conjunction with the viscose dampened double half-roll suspension, provides excellent transient response and cone damping.
The 75 mm Ø copper voice coil utilises the same technology fitted to our top-of-the-range 4” voice coil models. It employs the Interleaved Sandwich Voice coil (ISV), in which a high strength fiberglas former carries windings on the outer and inner surfaces to achieve a mass balanced coil. This results in an extremely linear motor assembly with a reduced tendency for eccentric behavior when driven hard.
The low inductance coil gives improvements in transient response.
Excellent heat dissipation has been achieved by incorporating air channels in the basket design, between the basket and top plate.
Maximum flux concentration and force factor in the gap are assured by the unique shape and design of the face and back plates, which have been created using our in-house Magnetic Flux FEA CAD resource.
The special treatment applied to the top and the back plate is far more resistant to the corrosive effects of salts and oxidization than any other treatment in use
Mounting and Shipping Info
Nominal Diameter380 mm ( in)
Nominal Impedance8 Ω
Minimum Impedance5.9 Ω
Nominal Power Handling1400 W
Continuous Power Handling2600 W
Frequency Range50 - 4800 Hz
Voice Coil Diameter75 mm (3.0 in)
Woofer Cone TreatmentWeather protected
Resonance Frequency40 Hz
Vas210.0 dm3 (7.42 ft3)
Sd900.0 cm2 (139.5 in2)
Overall Diameter387 mm (15.24 in)
Bolt Circle Diameter370 mm (14.57 in)
Baffle Cutout Diameter353.0 mm (13.9 in)
Depth167 mm (6.57 in)
Flange and Gasket Thickness19 mm (0.75 in)
Net Weight8.3 kg (18.3 lb)
Shipping Weight9.3 kg ( lb)
Shipping Box405 x 405 x 214 mm (15.94x15.94x8.43 in)
2 hours test made with continuous pink noise signal within the range Fs-10Fs. Power calculated on rated minimum impedance. Loudspeaker in free air.
Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
