Home
Products
LF drivers

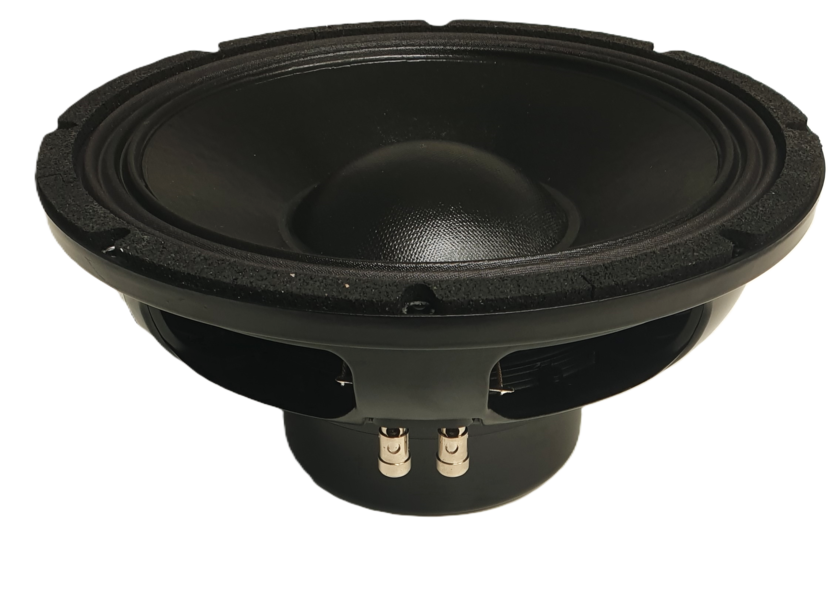

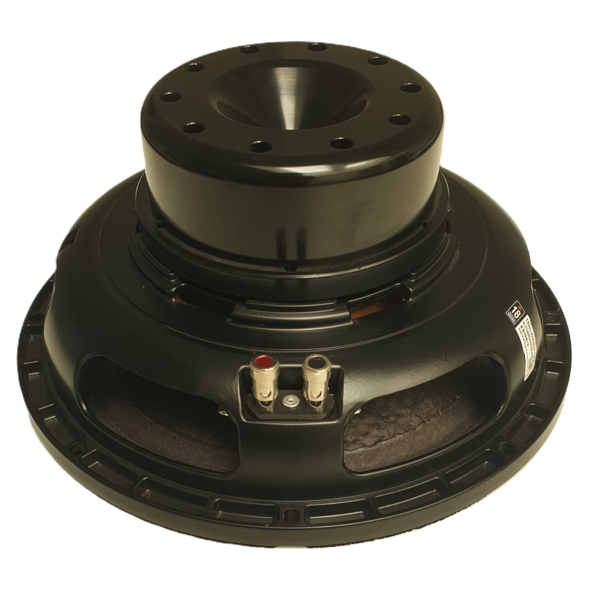

12NLW9410
Drawing
Datasheet
compare
8Ω
12NLW9410 8Ω
12.0
In
12NLW9410
12NLW9410
12.0
In
8Ω
12NLW9410 8Ω
compare
Drawing
Datasheet
Technologies
ISV - Interleaved Sandwich Voice Coil
SDR - Single Demodulating Ring
Specifications
Design
Parameters
Mounting and Shipping Info
Nominal Impedance
8 Ω
Minimum Impedance
5.3 Ω
Nominal Power Handling
1
1000 W
Continuous Power Handling
2
2000 W
Sensitivity
3
95.0 dB
Frequency Range
45 - 3000 Hz
Voice Coil Diameter
100 mm (4.0 in)
Winding Depth
28.0 mm (1.1 in)
Magnetic Gap Depth
12.0 mm (0.47 in)
Recommended Enclosure
40.0 dm
3
(1.41 ft
3
)
Recommended Tuning
45 Hz
Resonance Frequency
42 Hz
Re
4.5 Ω
Qes
0.27
Qms
6.2
Qts
0.26
Vas
55.0 dm
3
(1.94 ft
3
)
Sd
531.0 cm
2
(82.31 in
2
)
η₀
1.5 %
Xmax
11.0 mm
Xvar
12.0 mm
Mms
105.0 g
Bl
21.7 Txm
Le
1.07 mH
EBP
155 Hz
Overall Diameter
310 mm (12.2 in)
Bolt Circle Diameter
295 mm (11.61 in)
Baffle Cutout Diameter
283.0 mm (11.14 in)
Depth
143 mm (5.65 in)
Flange and Gasket Thickness
16 mm (0.65 in)
Net Weight
7.3 kg (16.09 lb)
2 hours test made with continuous pink noise signal within the range Fs-10Fs. Power calculated on rated minimum impedance. Loudspeaker in free air.
Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
