Alternative/Current Model:


  • 101 dB SPL 1W / 1m average sensitivity
  • 75 mm (3 in) Interleaved Sandwich Voice coil (ISV)
  • 450 W AES power handling
  • Neodymium magnet assembly
  • Humidity resistant cone
  • Suitable for midbass frequency reproduction

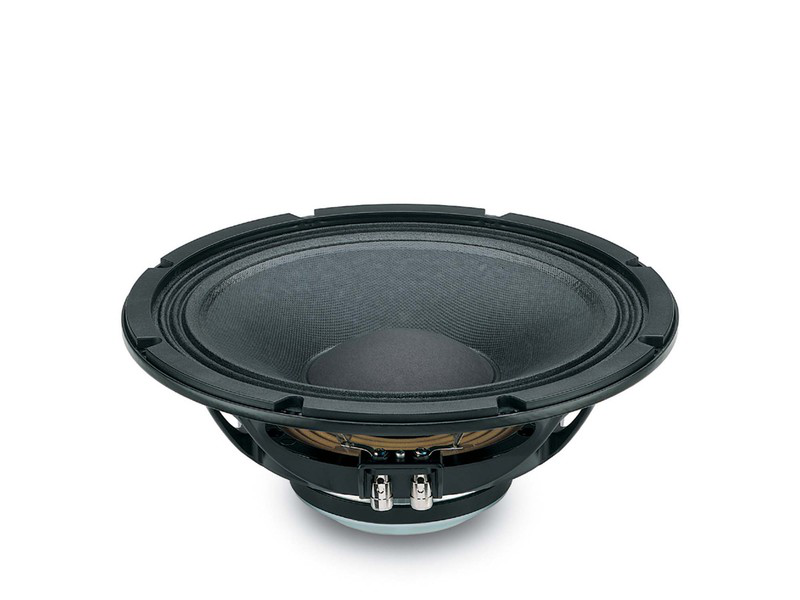

The 12ND610 has been specifically designed for use either as a midbass driver in compact 2-way reflex enclosures or as a direct radiating or horn loaded, dedicated midrange driver, in multi-way touring and fixed installation concert and arena systems.
The neodymium magnet assembly assures high flux concentration, low power compression and excellent heat exchange because the external magnet configuration is considerably more efficient than traditional under-pole magnet topology.
Consequently, high levels of force factor and power handling with an optimum power to weight ratio have been achieved.
Direct coupling of the special design basket and magnetic assembly with the large heat sink facilitates thermal flux through the ambient air, increasing the power handling capabilities and lowering the power compression.
The curvilinear paper cone has been created with a special high strength wood pulp designed to achieve the best possible linearity within its intended frequency range and to control bell-mode resonances around the cone circumference. The cone is carried by a multiroll suspension formed from a linen-like material which is more resistant to aging and fatigue than traditional materials.
The 12ND610 implements Interleaved Sandwich Voice coil technology (ISV), in which an aluminum coil is wound inside and outside a high strength fiberglas former, providing a better thermal and mechanical performance than conventional coils.
A proprietary humidity-block cone treatment makes the transducer suitable for outdoor use in adverse weather conditions. In addition, a special coating applied to both the top and back plates makes the 12ND610 far more resistant to the corrosive effects of salts and oxidization.




Mounting and Shipping Info

  • Nominal Diameter300 mm ( in)
  • Nominal Impedance16 Ω
  • Minimum Impedance14.5 Ω
  • Nominal Power Handling1450 W
  • Continuous Power Handling2700 W
  • Sensitivity3101.0 dB

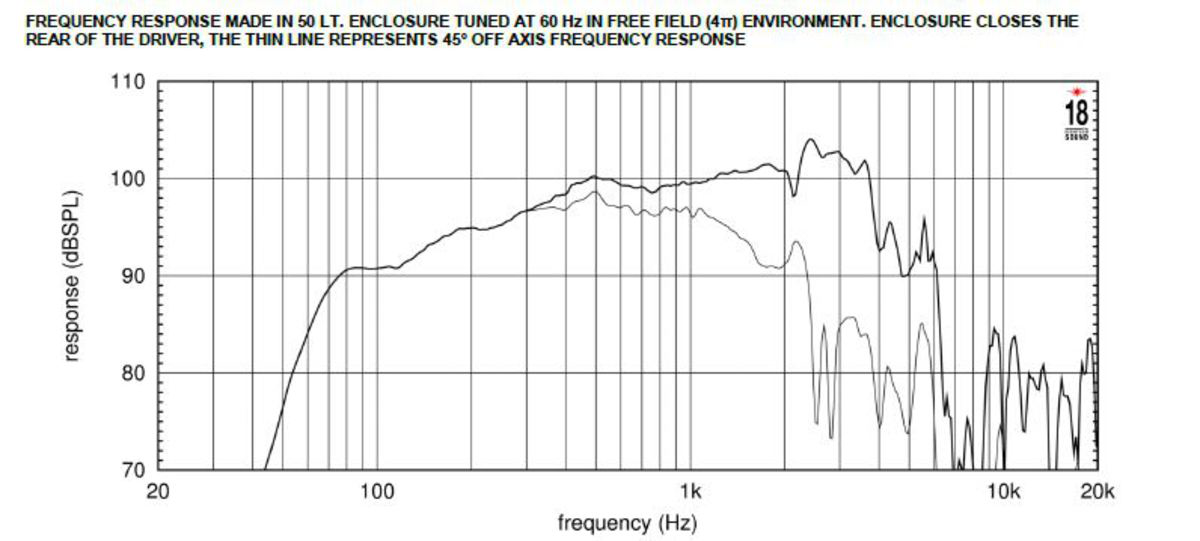

  • Frequency Range80 - 5000 Hz
  • Voice Coil Diameter75 mm (3.0 in)
  • Winding Materialaluminum
  • Surround ShapeTriple roll
  • Cone ShapeCurvilinear
  • Magnet MaterialNeo
  • Woofer Cone TreatmentWeather protected
  • Recommended Enclosure40.0 dm3 (1.41 ft3)
  • Recommended Tuning65 Hz
  • Resonance Frequency50 Hz
  • Re11.9 Ω
  • Qes0.22
  • Qms4.56
  • Qts0.21
  • Vas85.0 dm3 (3.0 ft3)
  • Sd530.0 cm2 (82.15 in2)
  • Xmax3.5 mm
  • Mms45.0 g
  • Bl27.9 Txm
  • Le0.76 mH
  • EBP227 Hz
  • Overall Diameter315 mm (12.4 in)
  • Bolt Circle Diameter296 mm (11.65 in)
  • Baffle Cutout Diameter282.0 mm (11.1 in)
  • Depth141 mm (5.55 in)
  • Flange and Gasket Thickness11 mm (0.43 in)
  • Net Weight4.7 kg (10.36 lb)
  • Shipping Weight5.1 kg ( lb)
  • Shipping Box332 x 332 x 184 mm (13.07x13.07x7.24 in)
  • 2 hours test made with continuous pink noise signal within the range Fs-10Fs. Power calculated on rated minimum impedance. Loudspeaker in free air.
  • Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
  • Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
