Features

  • - Planar Exit
  • - Super fast Transient response
  • - Extremely low harmonic distortion
  • - Dedicated Waveguide available
  • - Super accurate control directivity in vertical stacks.
  • - P.I. membrane

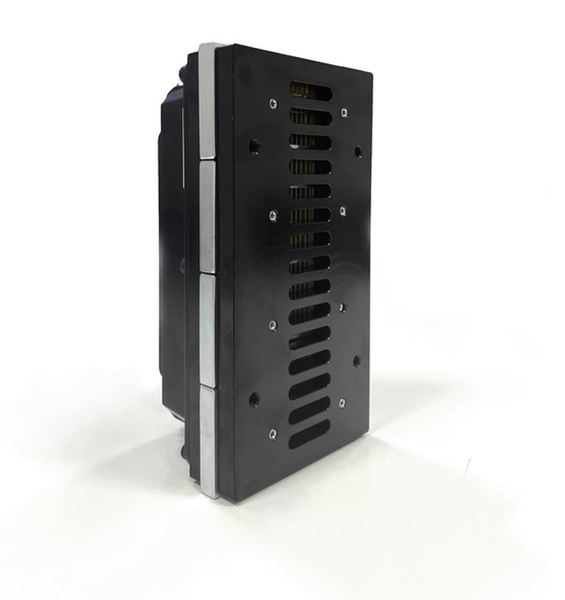

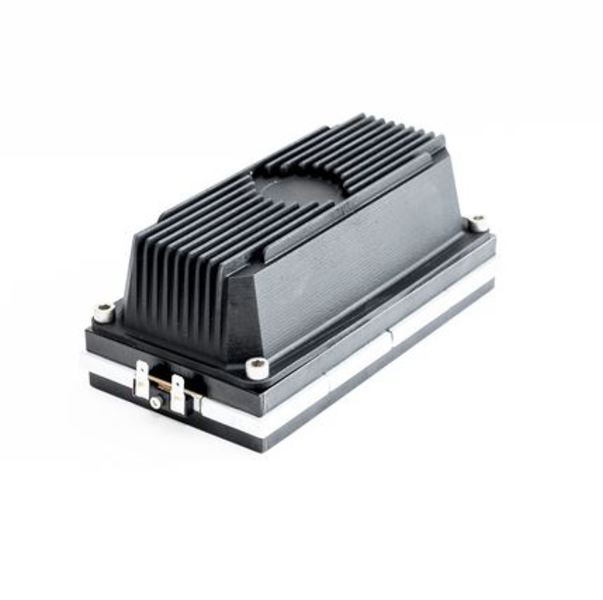

The 18sound first Air Motion Transformer, delivers the market a new benchmark in terms of quality and reliability.
A unique magnetic structure and the strongest Neo magnet, together with the highest quality membrane components are setting the new level for high quality planar high frequency reproduction with the lowest possible distortion level in the pro audio field and an unmatched transient response.


Specifications

Mounting and Shipping Info

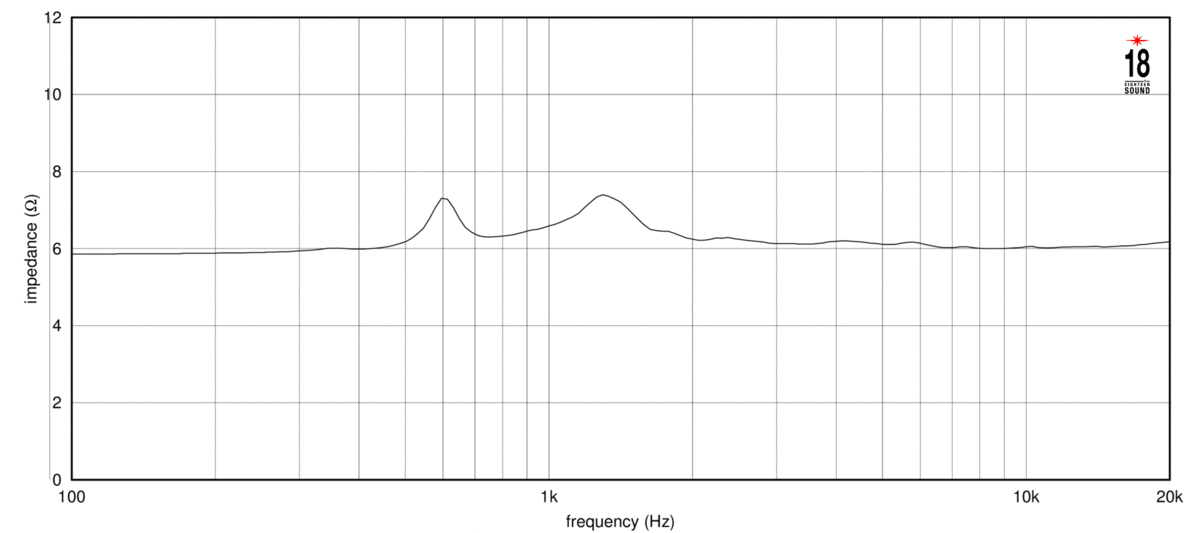

  • Nominal Impedance8 Ω
  • Minimum Impedance5.5 Ω
  • Nominal Power Handling160 W
  • Continuous Power Handling2120 W

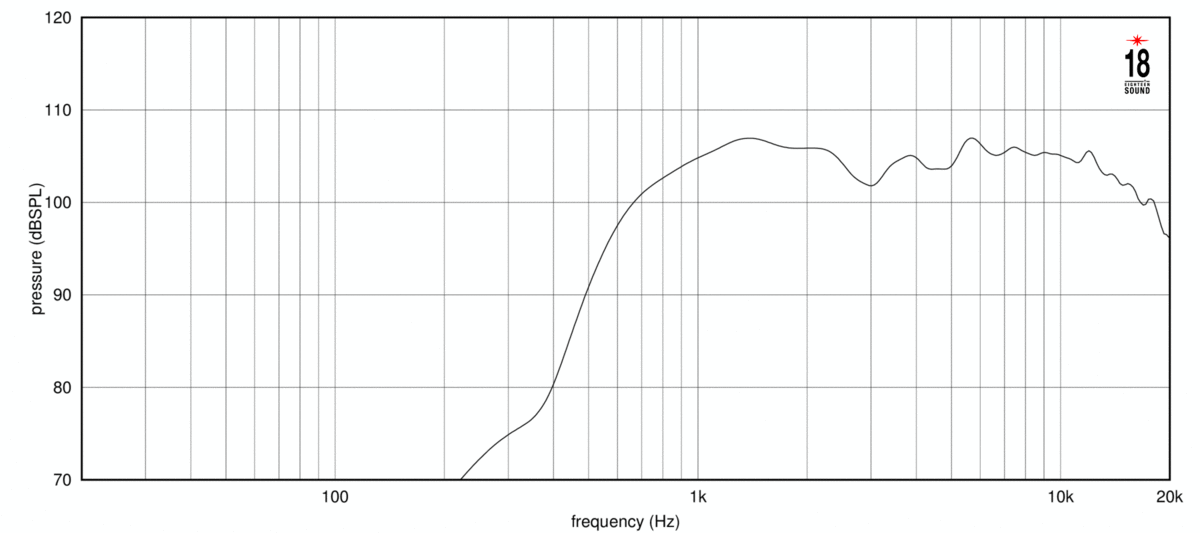

  • Sensitivity3105.0 dB
  • Frequency Range800.0 - 18.0 kHz
  • Recommended Crossover41.2 kHz
  • Diaphragm MaterialPolyester
  • Flux Density0.82 T

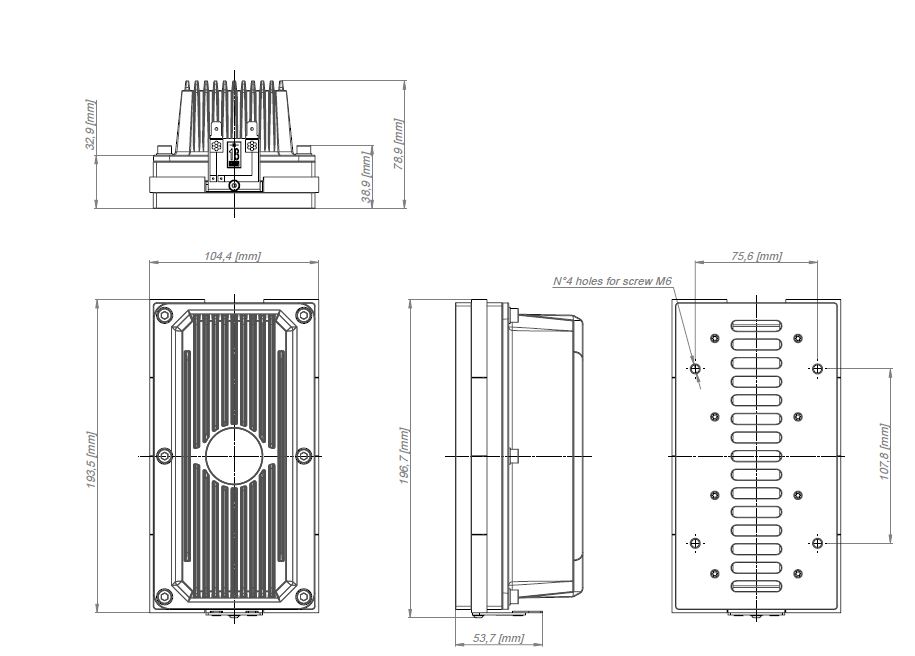

  • Over all rectangular throat dimension: 167x31mm (6,57x1.22in)
  • 4x4xM6 Holes
  • Bolt circles geometry: 174x86mm (6,85x3,38in)
  • Depth81 mm (3.19 in)
  • Net Weight3.4 kg (7.5 lb)
  • Shipping Box165x150x65 mm (6.50x5.91x2.56 in)
  • 2 hour test made with continuous pink noise signal within the range from the recommended crossover frequency to 20 kHz. Power calculated on rated nominal impedance.
  • Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
  • Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
  • 12 dB/oct. or higher slope high-pass filter.
