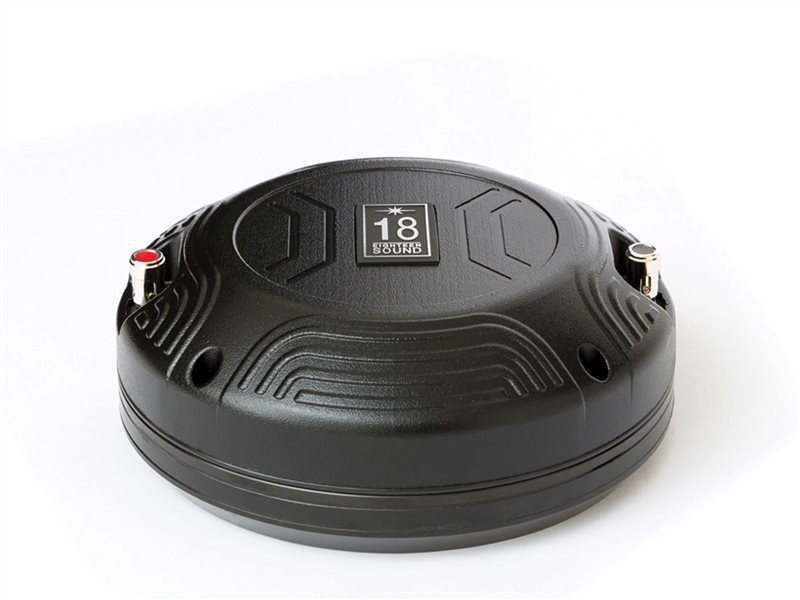

NSD4015Ti2 is a 1.5 inch exit neodymium compression driver designed for extremely high quality, high output sound system applications. Featuring a four inch copper-clad aluminum voice-coil and dome, the pure titanium membrane with integral surround has been optimized for high sensitivity and efficiency and an extended high frequency region. While maintaining a broad piston band and low distortion the results are maximum sound output with natural sound character and exceptional clarity up to the highest end of the frequency spectrum.
Mounting and Shipping Info
Throat Diameter40 mm (1.5 in)
Nominal Impedance16 Ω
Minimum Impedance14.0 Ω
Nominal Power Handling1160 W
Continuous Power Handling2320 W
Frequency Range0.8 - 20.0 kHz
Recommended Crossover40.8 kHz
Voice Coil Diameter100 mm (4.0 in)
Flux Density2.0 T
Overall Diameter150 mm (5.91 in)
Depth57 mm (2.24 in)
Net Weight3.2 kg (7.05 lb)
Shipping Weight3.35 kg (7.39 lb)
Shipping Box170 x 170 x 80 mm (6.69x6.69x3.15 in)
2 hour test made with continuous pink noise signal within the range from the recommended crossover frequency to 20 kHz. Power calculated on rated nominal impedance.
Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
