ND2T

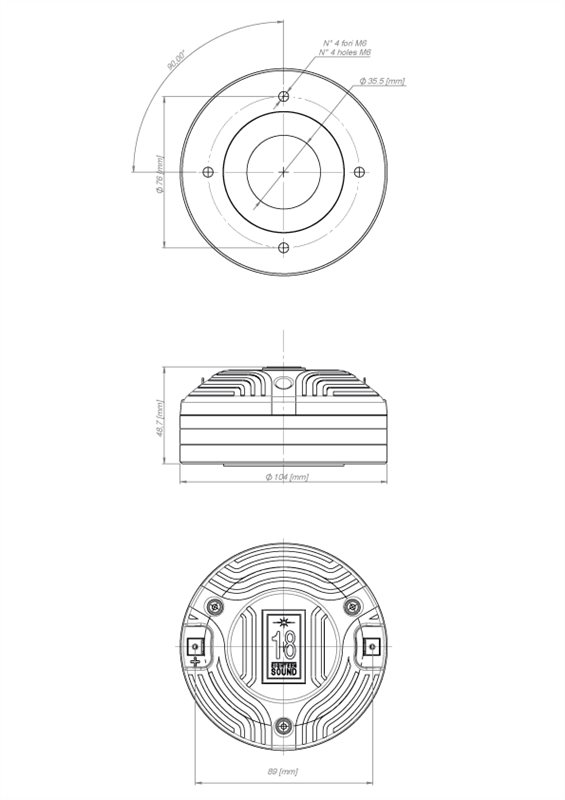

DrawingDatasheet
compare

1.4 In

ND2T

ND2T

1.4 In

compare
DrawingDatasheet

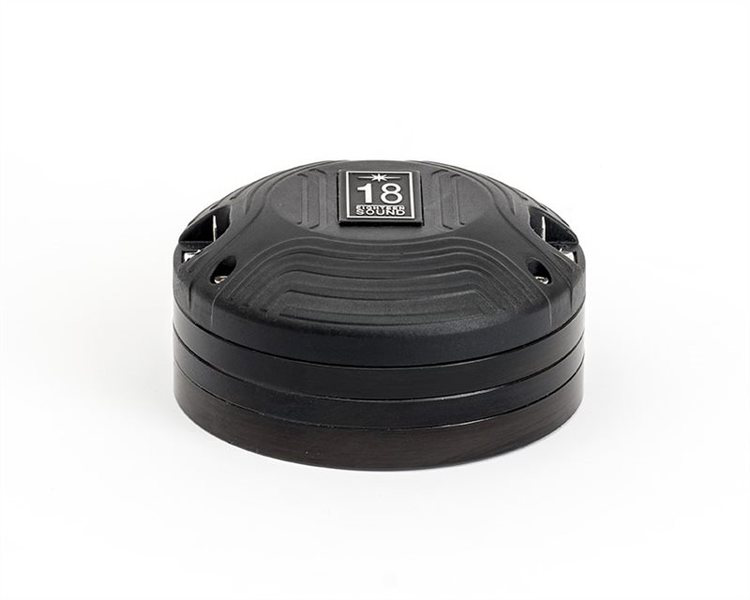

23_45_26_550_rkjvr48e

Features

  • 110 dB SPL 1W-1m average sensitivity
  • 1.4 inch exit throat
  • 160W maximum program power handling
  • Proprietary tangerine radial phase plug design
  • Edge-wound 61mm (2.4 in) aluminum voice coil
  • Pure titanium diaphragm assembly
  • Neodymium ring magnetic structure
  • Copper ring for reduced distortion and increased output
  • Self-centering d-kit for accurate and fast servicing
  • 16 Ohm version available

Technologies

Specifications

Mounting and Shipping Info

  • Throat Diameter36 mm (1.4 in)
  • Nominal Impedance8 Ω
  • Minimum Impedance7.9 Ω
  • Nominal Power Handling180 W
  • Continuous Power Handling2160 W
  • Sensitivity3110.0 dB
  • Frequency Range0.8 - 20.0 kHz
  • Recommended Crossover41.2 kHz
  • Voice Coil Diameter61 mm (2.4 in)
  • Winding MaterialAluminum
  • Diaphragm MaterialTitanium
  • Flux Density2.0 T
  • Magnet MaterialNeodymium
  • Overall Diameter104 mm (4.09 in)
  • Depth76 mm (2.99 in)
  • Net Weight1.5 kg ( lb)
  • Shipping Box165 x 165 x 150 mm (6.50x6.50x5.91 in)
  • 2 hour test made with continuous pink noise signal within the range from the recommended crossover frequency to 20 kHz. Power calculated on rated nominal impedance.
  • Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
  • Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
  • 12 dB/oct. or higher slope high-pass filter.
