22_09_31_724_nd1075

Features

  • 1 inch exit throat
  • 108 dB SPL 1W / 1m average sensitivity 44 mm (1 3/4 inch) voice coil diamete
  • 100 Watt program power handling
  • Titanium diaphragm
  • Proprietary Phase Plug design
  • Excellent thermal exchange
  • High grade neodymium magnet

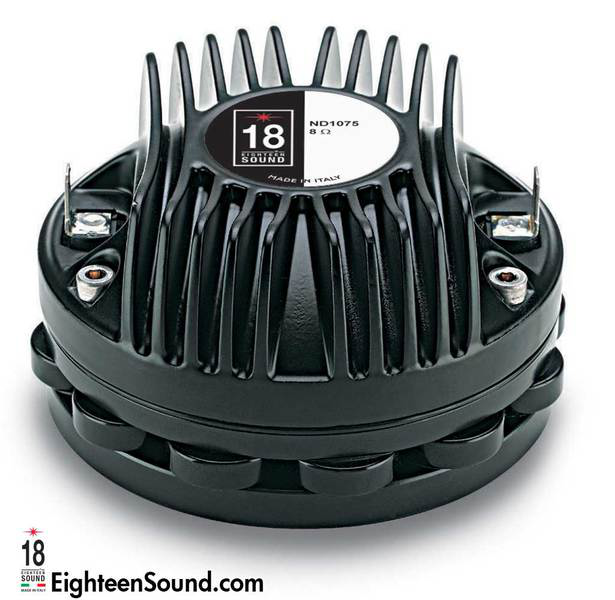

The ND1075 is a 1 inch exit neodymium high frequency compression driver specifically designed for high quality applications.
Equipped with proprietary phase plug architecture, the ND1075 has been developed to give high level manufacturing consistency and smooth coherent wavefront at horn entrance over all the working frequency range. This phase plug design, with its short openings and high flare rate value assures low distortion and remarkable
improvements in mid-high frequency reproduction.
With its ellipsoidal suspension shape, the titanium diaphragm assembly exhibits constant slope response from 1kHz to 18kHz with uniform smooth roll-off behavior. An edge-wound aluminum voice coil, wounded on proprietary treated Nomex, completes diaphragm assembly. Thanks to its physical properties, the proprietary treated Nomex former shows 30% higher value of tensile elongation at working operative temperature (200°C) when compared to Kapton.
Moreover, this proprietary former material is suitable to work also in higher moisture contents environments.
Through careful use of elementary pieces of neodymium magnets, Eighteen Sound engineers have developed a powerful neodymium magnet assembly able to reach 18 KGauss in the gap in compact and lightweight structure.
A copper ring on the pole piece reduces inductance above 10 kHz improving phase and impedance linearization.
The custom designed O-ring creates a tight seal between the plate and the cover assuring air chamber loading. Excellent heat dissipation and thermal exchange are guaranteed by the direct contact between the magnetic structure and the aluminum cover that allows to obtain a lower power compression value.
The ability to perform properly under inclement weather conditions is a key-point of the Eighteen Sound philosophy. A special treatment is applied to the magnet and the top and back plates of the magnetic structure making the ND1075 driver more resistant to the corrosive effects of salts and oxidization than any other treatment used by any other manufacturer.

Specifications

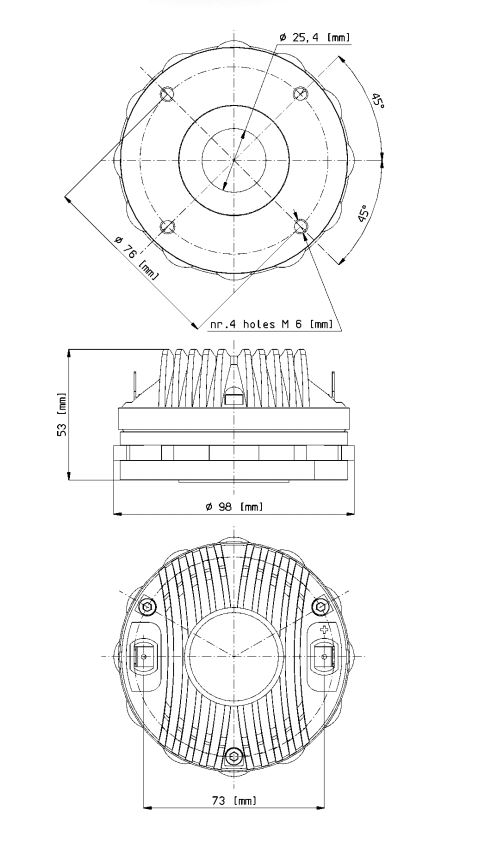

Mounting and Shipping Info

  • Throat Diameter25 mm (1.0 in)

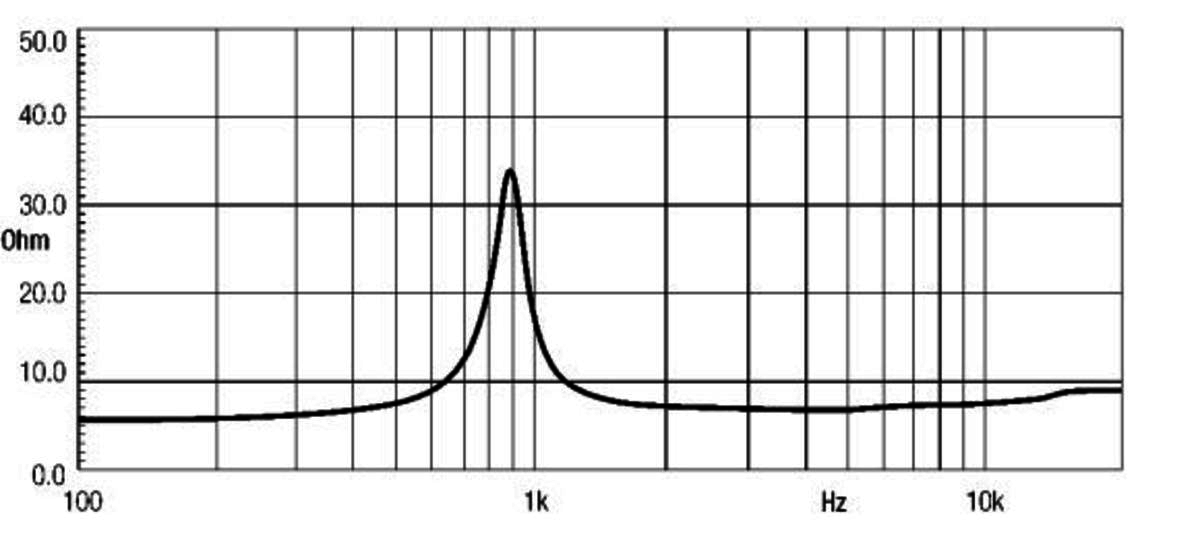

  • Nominal Impedance8 Ω
  • Minimum Impedance7.0 Ω
  • Nominal Power Handling150 W
  • Continuous Power Handling2100 W
  • Sensitivity3108.0 dB

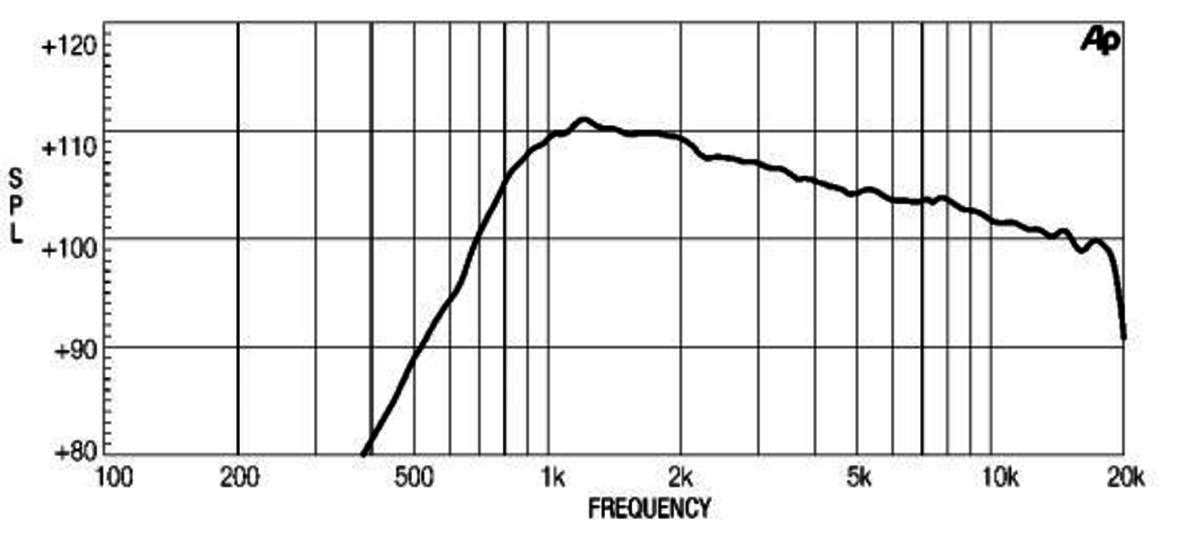

  • Frequency Range1.6 - 20.0 kHz
  • Recommended Crossover41.6 kHz
  • Voice Coil Diameter44 mm (1.75 in)
  • Winding MaterialAluminum
  • Diaphragm MaterialTitanium
  • Magnet MaterialNeodymium
  • Overall Diameter98 mm ( in)
  • Depth53 mm ( in)
  • Net Weight1.1 kg ( lb)
  • Shipping Weight1.2 kg ( lb)
  • Shipping Box97x97x58 mm (3.82x3.82x2.28 in)
  • 2 hour test made with continuous pink noise signal within the range from the recommended crossover frequency to 20 kHz. Power calculated on rated nominal impedance.
  • Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
  • Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
  • 12 dB/oct. or higher slope high-pass filter.
