Transmission line acoustical design minimizes internal reflections and acoustical losses
Throat shape optimized for lowering air distortion
Compact size for high arrayability
Diecast aluminum construction
The XG14 is a 1.4 inch throat entry line-array waveguide. The specific transmission line acoustical
design minimizes internal reflections and acoustical losses, while throat shape has been

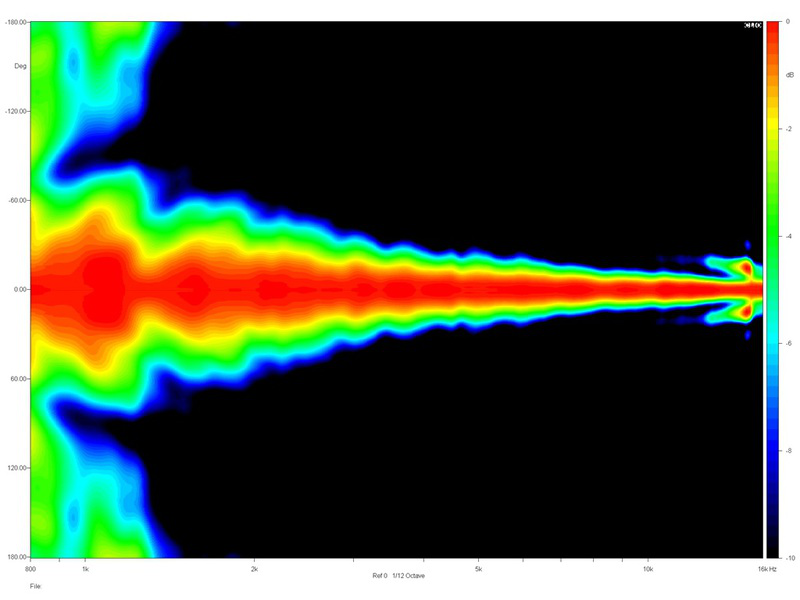

optimized for lowering air distortion. The XG14 has been optimised for obtaining a 10° vertical
dispertion angle, while the horizontal coverage angle could vary from80° to 120° depending on
the specific cabinet design. The waveguide has been developed to obtain optimum
performances when it willcoupled with 1.4 inch exit Eighteen Sound high frequency

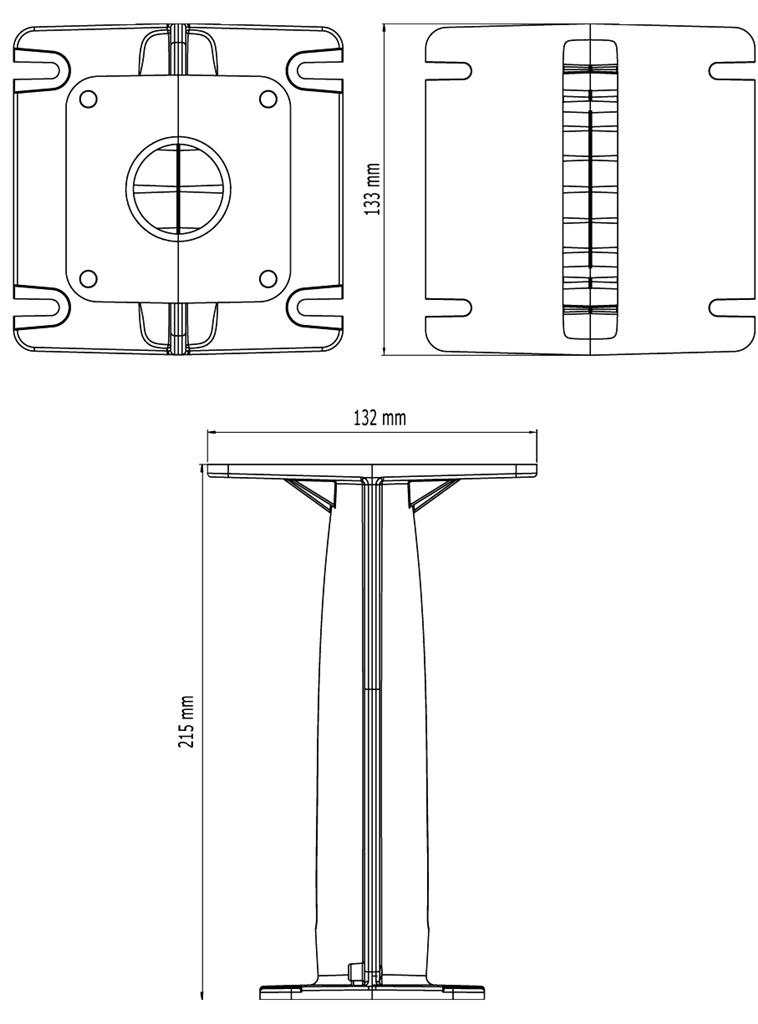

Mounting and Shipping Info

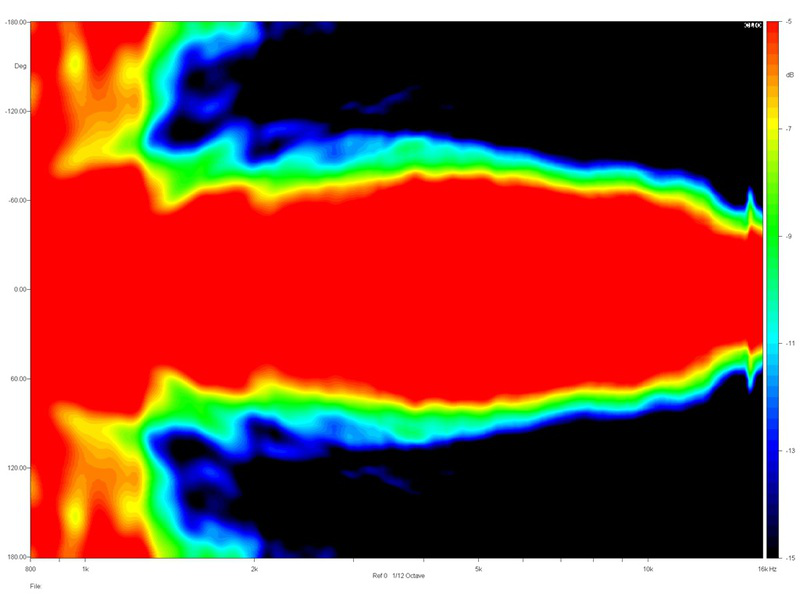

Horizontal Coverage120 ° Max
Recommended Crossover11.0 kHz
Waveguide MaterialDie-cast Aluminum
Nominal Impedance0 Ω
Minimum Impedance0.0 Ω
Nominal Power Handling20 W
Continuous Power Handling30 W

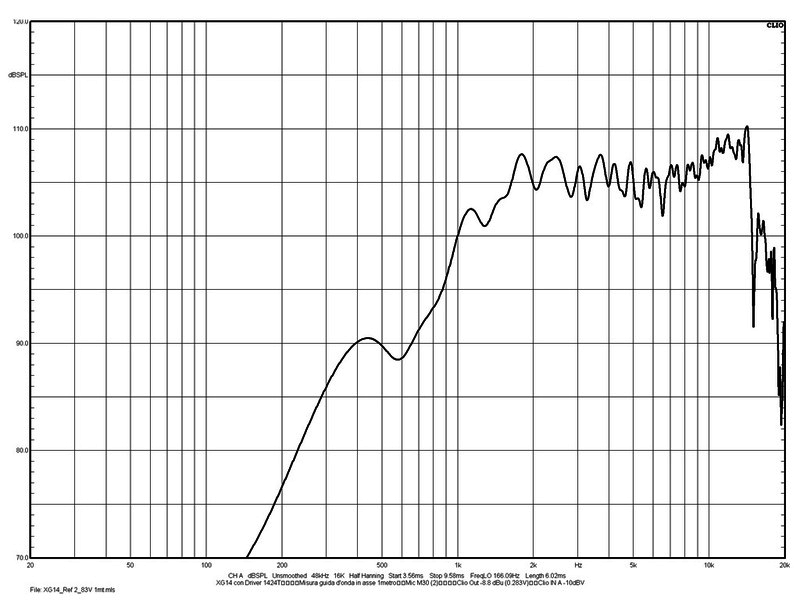

Frequency Range5500.0 - 18.0 kHz
Net Weight1.0 kg ( lb)
12 dB/oct. Or higher slope high-pass filter.
2 hour test made with continuous pink noise signal. Power calculated on rated nominal impedance.
Power on Continuous Program is defined as 3 dB greater then the Nominal rating.
Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
