HD3000T
DrawingDatasheet
compare

1.4 In

HD3000T

HD3000T

1.4 In

compare
DrawingDatasheet

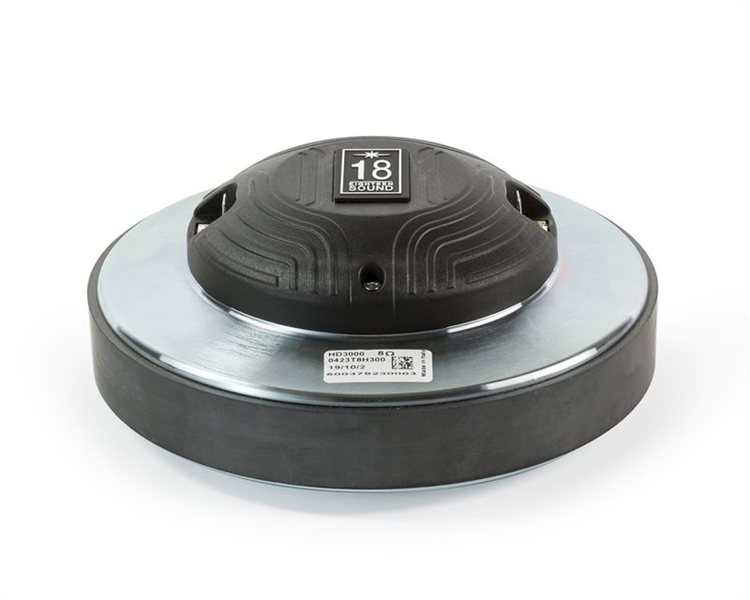

00_11_18_656_ipsuqstg

Features

  • 112 dB SPL 1W-1m average sensitivity
  • 1.4 inch exit throat
  • 240W maximum program power handling
  • Next-gen 4 slot phase plug design
  • Edgewound 75 mm (3 in) CCAW voice coil
  • Titanium Dome over PEN suspension diaphragm assembly
  • HF copper ring for reduced distortion and increased output

Technologies

Specifications

Mounting and Shipping Info

  • Throat Diameter36 mm (1.4 in)

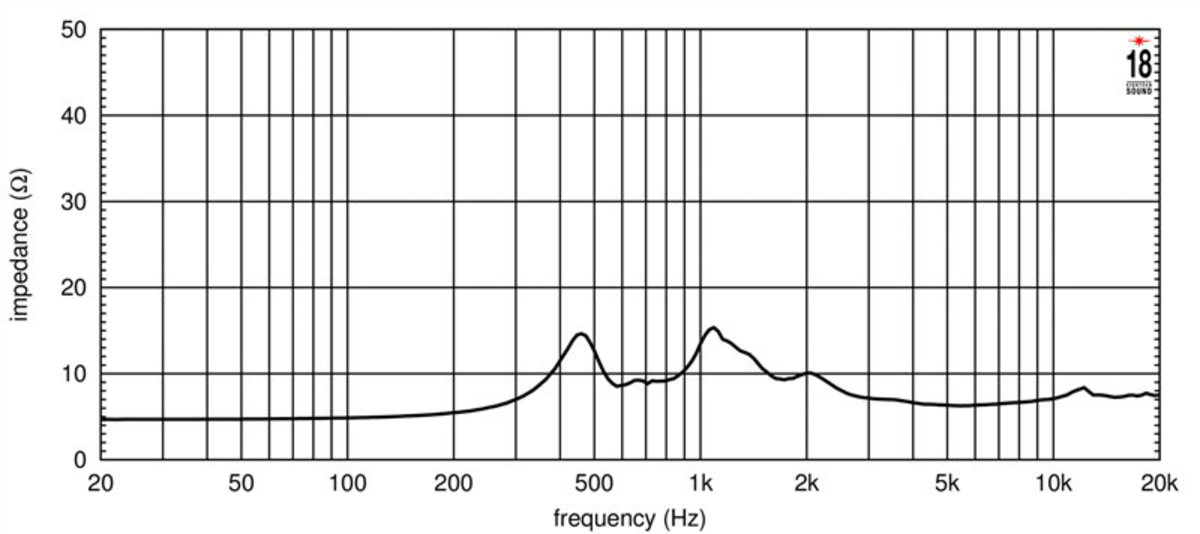

  • Nominal Impedance8 Ω
  • Minimum Impedance6.4 Ω
  • Nominal Power Handling1120 W
  • Continuous Power Handling2240 W

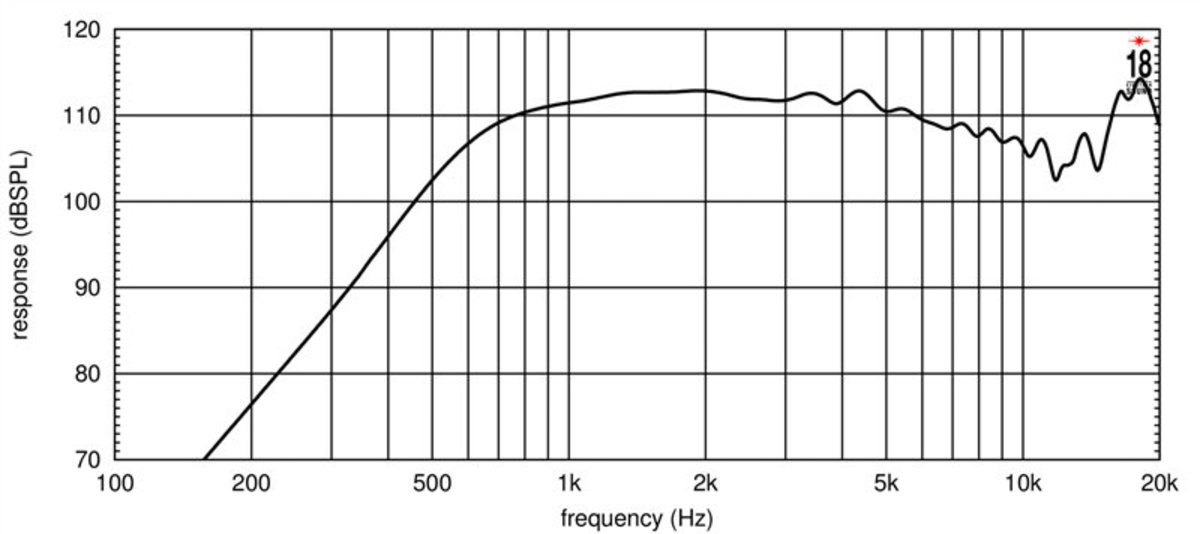

  • Sensitivity3112.0 dB
  • Frequency Range0.8 - 20.0 kHz
  • Recommended Crossover41.2 kHz
  • Voice Coil Diameter75 mm (3.0 in)
  • Winding MaterialAluminum
  • Diaphragm MaterialTitanium - Pen
  • Flux Density2.0 T
  • Magnet MaterialFerrite
  • Overall Diameter170 mm (6.69 in)
  • Depth68 mm (2.68 in)
  • Net Weight4.9 kg (10.8 lb)
  • Shipping Box190x175x85 mm (7.48x6.89x3.35 in)
  • 2 hour test made with continuous pink noise signal within the range from the recommended crossover frequency to 20 kHz. Power calculated on rated nominal impedance.
  • Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
  • Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
  • 12 dB/oct. or higher slope high-pass filter.
