Features

  • 95dB SPL 1W / 1m average sensitivity
  • 280W LF - 50W HF power handling
  • 51mm (2 inches) LF Interleaved Sandwich Voice coil (ISV)
  • 25,4mm (1 inch) HF driver edgewound voice coil
  • 90 degrees coverage pattern
  • Ideal for compact reflex applications

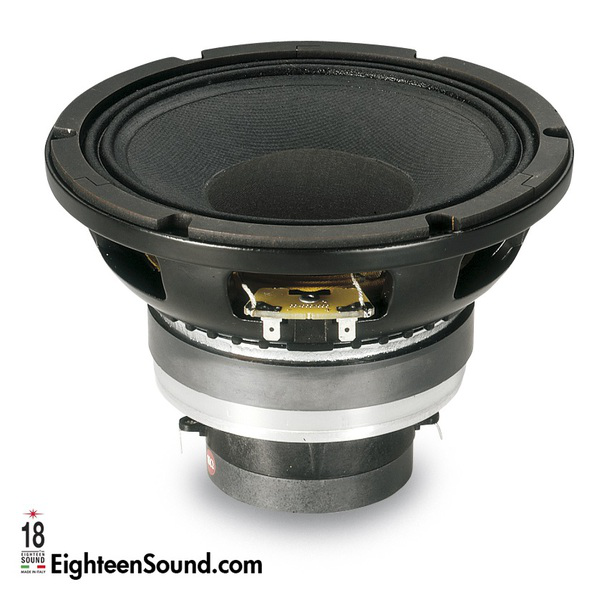

The 8CX401F coaxial transducer is a 8 inch - 1 inch coaxial driver combining excellent linearity with good efficiency and power handling capabilities.
It is primarily intended for compact reflex enclosures and, because of its versatile characteristics, may also be used in multiway systems or ceiling applications. Its nominal dispersion is 90 degrees.
The curvilinear, paper LF section cone is formed using a unique wood pulp composition designed to achieve the best possible rigidity and stiffness. A polycotton multiroll surround to provide increased excursion whilst controlling break up modes carries it.
The 51mm Ø state-of-the-art, aluminum wire voice coil employees same technology of that fitted to our top-of-the-range models using our Interleaved Sandwich Voice coil (ISV) technology. In essence, a high strength Fiberglas former is used to carry windings on both the outer and inner surfaces to achieve a mass balanced coil. This
results in an extremely linear motor assembly, which, in conjunction with the highly advanced design of the magnetic structure, provides a high force factor or BL.
The high frequency driver incorporates a polyester material diaphragm for best movement and stress control; the special radialribs increase stiffness avoiding uncontrolled vibration modes in the usable frequency range. An edge-wound copper clad aluminum voice coil wounded on treated Nomex completes the diaphragm assembly.
A computer aided FEA has been used in order to maximize the cone profile coupling and to control the energy in the desired frequency range.
A dedicated high quality passive crossover network is available upon request.
With the increasing use of outdoor audio events, the ability to perform in humid environments is another feature of the 8CX400F. This is achieved by means of exclusively developed humidity repellent cone treatment.

Specifications

Specifications LF unit

Specifications HF unit

Parameters

Mounting and Shipping Info

Crossover

  • Nominal Diameter200 mm (7.87 in)
  • Nominal Impedance8 Ω
  • Minimum Impedance LF6.1 Ω
  • Frequency Range65 - 6100 Hz
  • Dispersion Angle190 °
  • Woofer Cone TreatmentHumidity repellent
  • Magnet MaterialFerrite

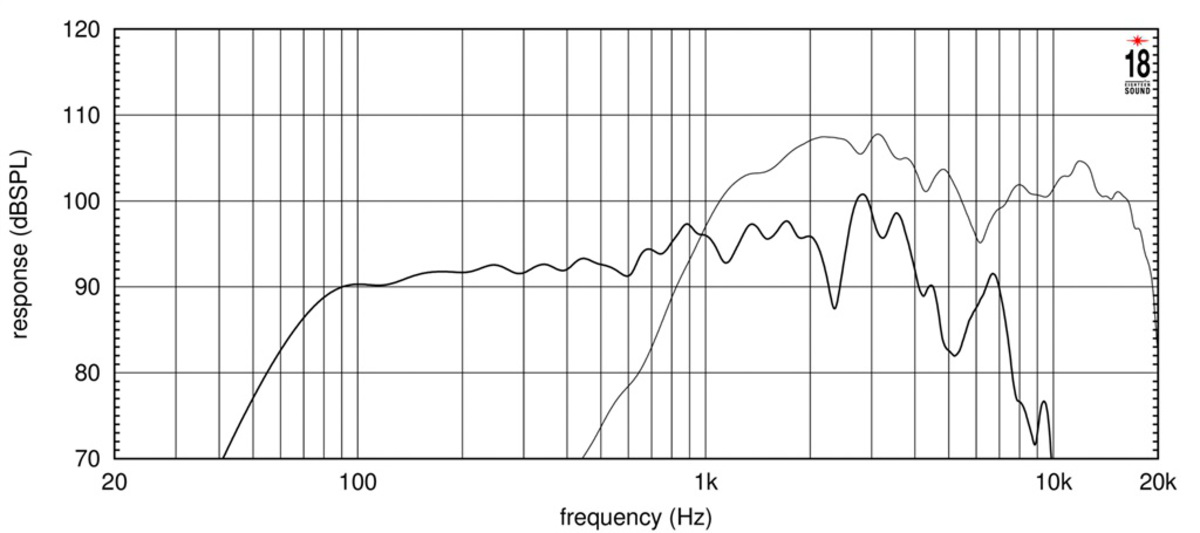

  • LF Sensitivity295.0 dB
  • LF Nominal Power Handling3280 W
  • LF Continuous Power Handling4400 W
  • LF Voice Coil Diameter51 mm (2.0 in)
  • LF Winding MaterialISV Aluminum
  • Former MaterialFiberglas
  • HF Sensitivity5105.0 dB
  • HF Nominal Power Handling625 W
  • HF Continuous Power Handling750 W
  • HF Voice Coil Diameter25 mm (1.0 in)
  • HF Winding MaterialEdge wound Aluminum
  • Diaphragm MaterialPolyester
  • Recommended Crossover83.0 kHz
  • Resonance Frequency56 Hz

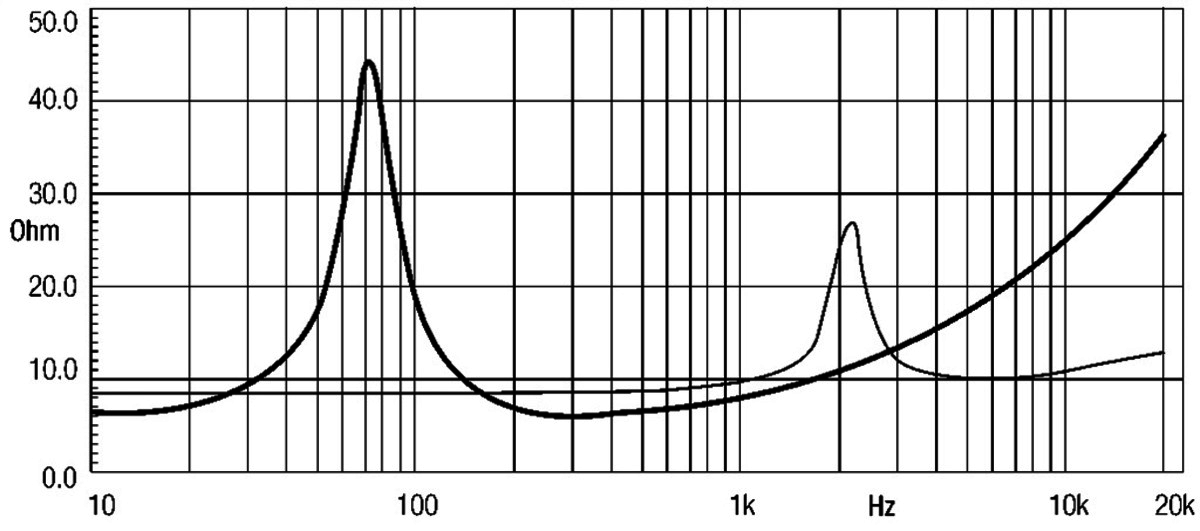

  • Re5.0 Ω
  • Qes0.38
  • Qms3.23
  • Qts0.34
  • Vas23.9 dm3 (0.84 ft3)
  • Sd227.0 cm2 (35.19 in2)
  • Xmax5.8 mm
  • Mms18.0 g
  • Bl9.3 Txm
  • Le0.96 mH
  • EBP147 Hz

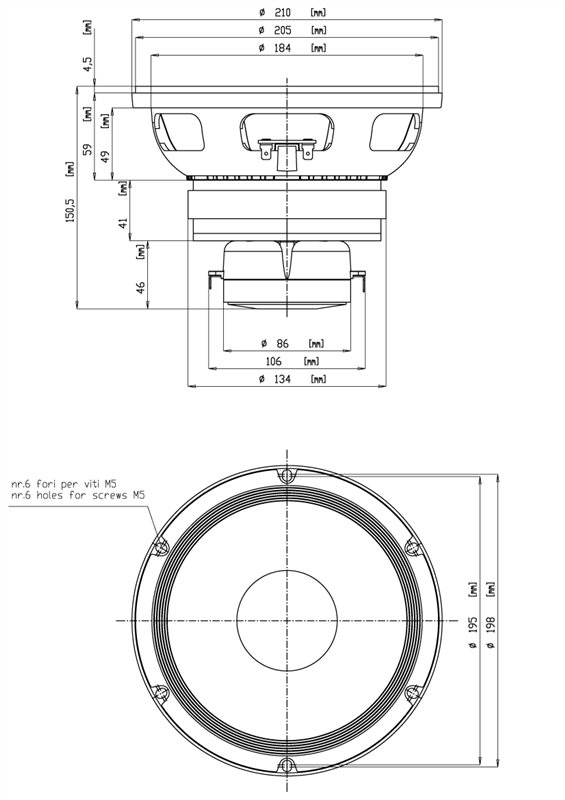

  • Overall Diameter210 mm (8.27 in)
  • Bolt Circle Diameter195 mm (7.68 in)
  • Baffle Cutout Diameter186 mm (7.32 in)
  • Depth150 mm (5.91 in)
  • Flange and Gasket Thickness14 mm (0.55 in)
  • Net Weight4.4 kg (9.7 lb)
  • Shipping Weight5.0 kg (11.02 lb)
  • Shipping Box235x235x165 mm (9.25x9.25x6.50 in)
  • Model03708XCR00
  • Nominal Impedance8.0 Ω
  • Low-pass Slope12.0 dB/oct
  • High-pass Slope12.0 dB/oct
  • Included by –6 dB down points.
  • Applied RMS Voltage is set to 2.83V.
  • 2 hours test made with continuous pink noise signal within the range Fs-10Fs. Power calculated on rated minimum impedance. Loudspeaker in free air.
  • Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
  • Applied RMS Voltage is set to 2.83V.
  • 2 hour test made with continuous pink noise signal within the range from the recommended crossover frequency to 20 kHz. Power calculated on rated nominal impedance. Loudspeaker in free air.
  • Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
  • 12 dB/oct. or higher slope high-pass filter.
